RE2008 Crossed Roller Slewing Disk Bearings 20mm ID X 36mm OD X 8mm Width Weight 0.04 Kgs RE2008UUCC0

認証
中国 Wuxi Handa Bearing Co., Ltd. 認証
中国 Wuxi Handa Bearing Co., Ltd. 認証
オンラインです

RE2008 Crossed Roller Slewing Disk Bearings 20mm ID X 36mm OD X 8mm Width Weight 0.04 Kgs RE2008UUCC0

RE2008 Crossed Roller Slewing Disk Bearings 20mm ID X 36mm OD X 8mm Width Weight 0.04 Kgs RE2008UUCC0
RE2008 Crossed Roller Slewing Disk Bearings 20mm ID X 36mm OD X 8mm Width Weight 0.04 Kgs RE2008UUCC0 RE2008 Crossed Roller Slewing Disk Bearings 20mm ID X 36mm OD X 8mm Width Weight 0.04 Kgs RE2008UUCC0

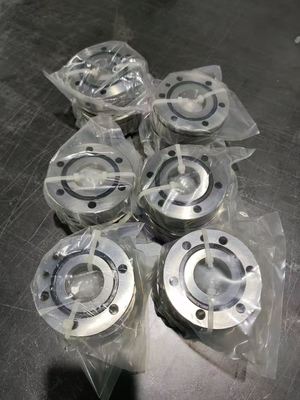

大画像 :  RE2008 Crossed Roller Slewing Disk Bearings 20mm ID X 36mm OD X 8mm Width Weight 0.04 Kgs RE2008UUCC0

商品の詳細:
起源の場所: 中国
ブランド名: HDBB
証明: ISO9001 CO GB
モデル番号: RE2008
お支払配送条件:
最小注文数量: 1pc
価格: USD or CNY by Negotiation
パッケージの詳細: 単一の絵の具箱/産業パッキング
受渡し時間: 5-7営業日
支払条件: T/T、ウェスタン・ユニオン、CNY、一覧でL/C

RE2008 Crossed Roller Slewing Disk Bearings 20mm ID X 36mm OD X 8mm Width Weight 0.04 Kgs RE2008UUCC0

説明
ローラーベアリングタイプ: 交差した モデル: RE2008
ベアリングタイプ: ローラー 体重(kg): 0.04
材料: クロム鋼 GCr15 工事: 単一行
基本定格荷重C: 3.23kN 基本定格荷重Co: 3.1kN
温度範囲: 0~230°F ABEC 評価: ABEC5(ABEC7/9で利用可能)
ハイライト:

cross roller slewing bearing

,

20mm ID cross roller ring

,

36mm OD cross roller ring

RE2008 Crossed Roller Slewing Disk Bearings 20mm ID X 36mm OD X 8mm Width Weight 0.04 Kgs RE2008UUCC0




Features :

How Does RE2008 Bearing Handle Combined Loads?

RE2008 Bearing features a crossed roller design, providing excellent stability under combined loads.

Its steel rings and rollers ensure durability, with a basic load rating of 3.23 kN for reliable performance.

The press-fit shaft mount simplifies installation, while the open design allows for easy lubrication.

With a temperature range of 0-230°F, it performs well in various operating conditions.



Application:

Industrial Uses of RE2008 Bearing
RE2008 Bearing is commonly used in machine tools, where its crossed roller design provides excellent stability for rotary tables and indexing heads.
The compact size makes it ideal for space-constrained applications without sacrificing load capacity.

Where Is RE2008 Bearing Used?
You’ll find RE2008 Bearing in robotics, particularly in articulated arms that require precise movement under combined loads.
Its steel construction ensures durability even in high-speed automation environments.

Built for Heavy-Duty Use: RE2008 Bearing
RE2008 Bearing handles demanding tasks in packaging machinery, where consistent performance is key.
The press-fit mounting simplifies installation while maintaining alignment accuracy.

Medical vs Industrial: Where RE2008 Bearing Excels
In medical imaging devices, RE2008 Bearing offers smooth rotation for precise positioning.
Industrial applications like CNC lathes benefit from its ability to manage radial and axial loads simultaneously.

Perfect Fit for Automation: RE2008 Bearing
RE2008 Bearing works well in 3D printers, ensuring accurate layer alignment during printing.
The ABEC5 rating provides a good balance of precision and cost-effectiveness for most automated systems.
